100MHz高速数字信号记录仪

LOG是100MHs 高速数据记录器用于从嵌入式电子系统数字总线和数据记录。先进的过滤/数据存储资格选项巨大的8M缓冲区数据记录存储体,几乎无限的数据储存在您的电脑。
生产厂商: 北京迪阳专卖 产品型号: LogStorm
产品简介: LOG是100MHs 高速数据记录器用于从嵌入式电子系统数字总线和数据记录。先进的过滤/数据存储资格选项巨大的8M缓冲区数据记录存储体,几乎无限的数据储存在您的电脑。


元培翻译产业情报:LOG Storm数据记录仪极具数据过滤性能,可使用USB 2.0连接存储数据,将数据传输至个人电脑,并连续使用较长时间。该装置提供了高达100兆赫的采样率,可瞬间生成千兆字节信息。
  据了解,该装置可用作专门的软件/硬件组合,允许设计工程师连续数小时或数天收集高速数字总线信息。LOG Storm的应用包括不间断的过滤数据包标题评估,长期总线监测,单个程序启动信息监测,实验室内开发,IP评估和安装后方法。LOG Storm Studio软件兼容LOG Storm数据记录装置。




LOG Storm is a high-speed data logger used for recording activity from embedded electronic system digital bus and data lines.  Record during hours and days.  Extract specific events from bus traffic.

Benefits

  • always ON / always-recording
  • advanced filtering / data storage qualification options
  • huge 8 MSample local buffer in data logger hardware
  • virtually unlimited data storage on your PC




 Highlights

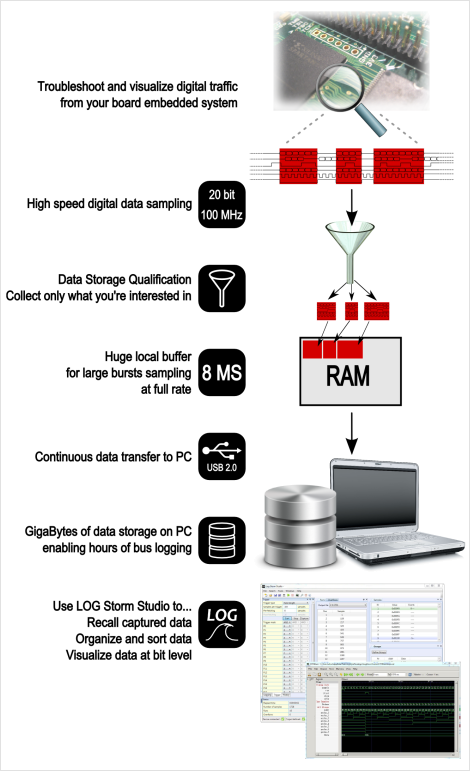

Compared to other test and debug instruments, LOG Storm offers unique and unprecedented visibilty from PC over digital embedded systems.

Large memory buffer and usable direct storage on to a host PC enable hours of logging and the assurance of not missing functional bugs that cause your electronic board or chip to malfunction.

Rich triggering and data filtering options

LOG Sorm提供2种触发和数据过滤选项


该软件包包括:1X LOG Storm设备

                                    1个USB到迷你-B电缆
                                    1X包飞导线
                                     为SPI风暴Studio软件许可证

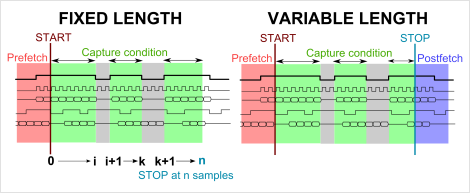

固定的长度触发器定义一个起始触发条件和捕获长度。
Log Strom
侦查到START条件后开始收集指定样本长度的数据。在此之后,它会等待,直到检测到一个新的START条件。

甚至START条件之前发生的事件可以记录,通过定义一个预取长度。

此外,可以定义表达式资格必须记录的数据(下图中的绿色区域)。

可变长度的触发
不定义捕获的长度,但需停止条件,和可选POSTFETCH长度。

POSTFETCH
长度后LOG Storm会停止直到一个新的START条件。非常类似固定的长度,可用于数据存储资格。

Fixed length trigger defines a START trigger condition and a capture length.  LOG Storm starts recording data upon the detection of the START condition and collects a the specified number of samples. After this, it waits until the detection of a new START condition.

Events occurring before the START condition can be recorded too, by defining a PREFETCH length.

In addition, expressions qualifying which data must be recorded can be defined (green area in the figure below).

Variable length trigger does not define a capture length, but a STOP condition and optionally a POSTFETCH length.

LOG Storm data logger stops after the POSTFETCH length and waits until a new START condition. Similarly to the fixed length, data storage qualification can be used.

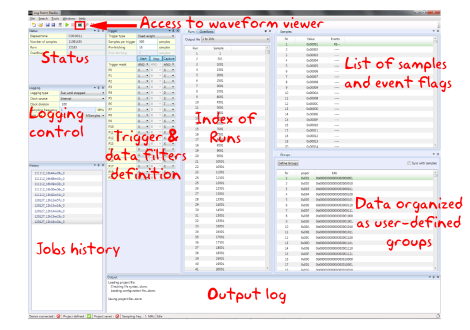

     LOG Storm Studio software



LOG Storm Studio software is included with LOG Storm device

Platform: Win (XP/7) (32 bit / 64 bit)
Includes: GUI and FREE C/C++ API; GTK Wave waveform viewer.

C/C++ API enables control from within user-defined programs and environments. It notably allows task automation and advanced data processing.
