1GHz采样；双通道隔离手持示波器+万用表
生产厂商： 迪阳公司专卖
产品型号： DSO1062S
产品简介： 全隔离手持示波表，示波器通道间完全隔离，示波器和万用表通道隔离，示波器、万用表与USB等通讯接口之间完全隔离，60MHz-200MHz 带宽,1GSa/s 实时采样率,2M 存储深度, 6000 计数万用表.5.6 吋大屏幕彩色液晶显示，高分辨率(640*480）
产品简介： 全隔离手持示波表，示波器通道间完全隔离，示波器和万用表通道隔离，示波器、万用表与USB等通讯接口之间完全隔离，60MHz-200MHz 带宽,1GSa/s 实时采样率,2M 存储深度, 6000 计数万用表.5.6 吋大屏幕彩色液晶显示，高分辨率(640*480）
售价：￥5400
划时代的多功能便携式手持示波器:
|
型号
|
实时采样率等效采样
|
带宽
|
存储
|
简介
|
价格
|
|
DSO1050C
|
250MS/s 实时 50GS/s 等效
|
50MHz
|
32K
|
示波器+频谱+万用表
|
3200元
|
|
DSO1060
|
250MS/s 实时 50GS/s 等效
|
50MHz
|
32K
|
示波器+频谱+6000计数万用表
|
3600元
|
|
DSO8060
|
250MS/s 实时 50GS/s 等效
|
50MHz
|
32K
|
示波器+任意信号源+频率计数
器+频谱分析+万用表
|
3900元
|
|
DSO1200
|
500MS/s 实时 50GS/s 等效
|
200MHz
|
32K
|
示波器+频谱+6000计数万用表
|
4900元
|
|
|
|
|
|
|
|
|
DSO1062B
|
1GS/s 实时 25GS/s 等效
|
60MHz
|
1MB
|
示波器+频谱+6000计数万用表
|
4900元
|
|
DSO1102B
|
1GS/s 实时 25GS/s 等效
|
100MHz
|
1MB
|
示波器+频谱+6000计数万用表
|
5400元
|
|
DSO1202B
|
1GS/s 实时 25GS/s 等效
|
200MHz
|
1MB
|
示波器+频谱+6000计数万用表
|
5900元
|
|
|
|
|
|
|
|
|
DSO1062S
|
1GS/s 实时 25GS/s 等效
|
60MHz
|
1MB
|
隔离示波器+频谱+万用表
|
5400元
|
|
DSO1122S
|
1GS/s 实时 25GS/s 等效
|
120MHz
|
1MB
|
隔离示波器+频谱+万用表
|
5600元
|
|
DSO1152S
|
1GS/s 实时 25GS/s 等效
|
150MHz
|
1MB
|
隔离示波器+频谱+万用表
|
5800元
|
|
DSO1202S
|
1GS/s 实时 25GS/s 等效
|
200MHz
|
1MB
|
隔离示波器+频谱+万用表
|
5980元
|
|
|
|
|
|
|
|
|
DSO1062BV
|
1GS/s 实时 25GS/s 等效
|
60MHz
|
1MB
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
4800元
|
|
DSO1102BV
|
1GS/s 实时 25GS/s 等效
|
120MHz
|
1MB
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
4980元
|
|
DSO1202BV
|
1GS/s 实时 25GS/s 等效
|
200MHz
|
1MB
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
5900元
|
|
|
|
|
|
|
|
|
DSO1062CV
|
1GS/s 实时 25GS/s 等效
|
60MHz
|
40K
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
4600元
|
|
DSO1102CV
|
1GS/s 实时 25GS/s 等效
|
120MHz
|
40K
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
4900元
|
|
DSO1202CV
|
1GS/s 实时 25GS/s 等效
|
200MHz
|
40K
|
示波器+频谱+万用表（内置视频帮助，2G SD卡
|
5600元
|
|
|
|
|
|
|
|
全隔离手持示波表，示波器通道间完全隔离，示波器和万用表通道隔离，示波器、万用表与USB等通讯接口之间完全隔离，60MHz-200MHz 带宽,1GSa/s 实时采样率,2M 存储深度, 6000 计数万用表.5.6 吋大屏幕彩色液晶显示，高分辨率(640*480）
2．附件：
 |
|
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
3.其它图片

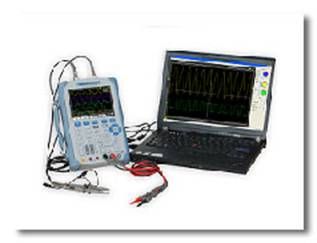

.jpg) 连接到计算机上就变成虚拟示波器
|
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
.jpg) |
4. Characteristic(Handheld Oscilloscope/Multimeter)
• 全隔离手持示波表，示波器通道间完全隔离，示波器和万用表通道隔离，示波器、万用表与USB等通讯接口之间完全隔离，隔离等级:1000V CATII,600V CATIII.
• High Bandwidth 60MHz-200MHz Oscilloscope,1GS/s sample rate, and 6000 Counts DMM with analog bargraph , and data recorder.
• 2M Memory Depth.
• High Refresh Rate (2500 frames)
• Large 5.6 inch TFT Color LCD Display，High Resolution(640*480）, Dual-Window Design --More clear, More Detailed
• One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform
• Easy-to-use pop-up menu with built-in multi-language help system
• 23 Automatic Measurements
• Waveform Math: Add, Subtract, Multiply, and Divide
• Store and recall over
• Automatic cursor tracking measurements
• XY Mode
• Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems
• Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames
• Pass-Fail function compares a stored waveform to an unknown input
• Average Mode for smoothing waveforms
• Square Wave Output (2V, 1kHz) for probe adjustment
• USB Host/Device 2.0 full-speed interface ,support removeable disk, LAN Optional ,Easy to control by PC or long-distance.
• Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
• Labview\VB\VC Second Design instance.
5. 硬件技术指标：
|
Model
|
DSO1202S
|
DSO1122S
|
DSO1062S
|
|
Oscilloscope mode
|
|||
|
Bandwidth
|
200MHz
|
120MHz
|
60MHz
|
|
Real-time Sample Rate
|
1GSa/s
|
||
|
Equivalent Sample Rate
|
25GSa/s
|
||
|
SEC/DIV Range
|
2nS/div-2000S/div (in a 2, 4, 8 sequence)
|
||
|
Delay Time Accuracy
|
500ps
|
||
|
Vertical
|
|||
|
A/D Converter
|
8-bit resolution
|
||
|
VOLTS/DIV Range
|
2mV/div～5V/div at input BNC
|
||
|
Position Range
|
±50V(5V/div),±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div)±400mV(20mV/div～2mV/div)
|
||
|
Record Length
|
Single-channel: Maximum 2M; Dual-channel:Maximum 1M
|
||
|
Trigger
|
|||
|
Trigger Sensitivity
(Edge Trigger Type) |
DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
AC: Attenuates signals below 10Hz HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity |
||
|
Trigger Level Range
|
CH1,CH2: ±8 divisions from center of screen
|
||
|
Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns) |
CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)
|
||
|
Holdoff Range
|
100ns-10s
|
||
|
Trigger Type
|
|||
|
Edge
|
Trigger on the rising or falling edge
|
||
|
Pulse Width
|
Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s |
||
|
Video
|
Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) |
||
|
Slope
|
Trigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s |
||
|
Overtime
|
from the rising or falling edge
Set Time: 20ns-10s |
||
|
Alternate
|
Internal trigger on edge, pulse width, video or slope
|
||
|
Measurement
|
|||
|
Cursors
|
Manual: The difference between voltage cursors △V; the difference between time cursors △T; 1/△T calculated by Hz.
Tracing: The voltage and time at a waveform point |
||
|
Automatic
|
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
|
||
|
Meter Mode
|
|||
|
Max.Resolution
|
6,000 Counts
|
||
|
DMM Testing Modes
|
Voltage, Current, Resistance, Capacitance,Diode & Continuity
|
||
|
Max. Input Voltage
|
AC: 600V, DC: 800V
|
||
|
Max. Input Current
|
AC: 10A, DC: 10A
|
||
|
Input Impedance
|
10 MΩ
|
||
|
Isolation
|
|||
|
The float voltage between BNC and Ground
|
600V CATIII, 1000V CAT II
|
||
|
The float voltage between each Channel
|
600V CATIII, 1000V CAT II
|
||
|
The float voltage between Multimeter and Ground
|
1000V
|
||
|
between input Ports directly
|
400V CAT II
|
||
|
Input by 10:1 probe
|
600V CATIII, 1000V CAT II
|
||
|
The Max input voltage of Multimeter
|
DC 800V,AC 600V
|
||
|
Display
|
|||
|
Type
|
Right angle 5.6 16-digit color LCD
|
||
|
Resolution
|
640*480 dots
|
||
|
Contrast
|
16 gears, with the progress bar to show adjustment
|
||
|
Interface
|
USB host and USB slave, Lan Optional
|
||
|
Power Supply
|
|||
|
Voltage
|
DC Input:12--17VDC, 2000mA
|
||
|
Mechanical
|
|||
|
Size
|
245 x 163 x 52 (mm)
|
||
|
Weight
|
1.3KG (exclusive of packing and accessories)
|
||
6．软件：
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
7．SecondDesign：
Supply DEMO code (VC、VB、LABVIEW)
