CPCI总线,16位 32/64/128-通道,数据采集卡

生产厂商： 迪阳公司代理 产品型号： CP213
产品简介： 32,64或128通道模拟量采集卡，16位分辨率，100K采样，CPCI或PXI总线，二次开发。

售价：￥0

特性：

32, 64 or 128 channels of analog input

16 multi-function digital I/O (TTL) channels that may be configured as digital in, digital out, or selectively attached to 2 frequency in, 2 counter in, and/or 2 timer out channels

16-bit resolution

Programmable gain per channel

Programmable scan rates of <1 S/s through 100 kS/s

Optional 10 Hz to 1 kHz low pass filters

Precision on-board reference for end-to-end calibration

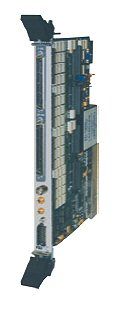

The CP213 is a single-width, 6U, CompactPCI/PXI module with either 32 or 64 differential analog input channels that can alternately be configured under software control as 64 or 128 single-ended analog input channels. A 16-bit ADC scans each channel at a scan rate chosen by the user. The number of channels scanned and scan rate are software selectable. Scans may be triggered from either the internal clock, one of eight PXI backplane triggers, the PXI star trigger bus or an external SMB connector on the module front panel. Single and continuous scan operations are supported. If single scan operation is chosen, an interrupt may be generated at the end of the scan.
