32通道,16位,40MHz/s,同步数据流盘系统

4~~32通道,40MS/s 采样,16位分辨率,20MHz带宽,64MB存储。
生产厂商: 迪阳公司代理 产品型号: Acqui-REC
产品简介: 4~~32通道,40MS/s 采样,16位分辨率,20MHz带宽,64MB存储。

连续数据记录系统
  记录通道由4通道~~32通道 (可变)

  • 32 Channels synchronous at up to 40MS/s per channel
  • 16 Bit of resolution
  • Up to 20 MHz Bandwidth
  • 64M Samples per channel

Software
AcquiFlex, Oscilloscope software

  • Time & Frequency domain display
  • group of 8 channels
  • Zoom on time display
  • Automatic measurements
  • Persistence mode
  • Cursor
  • AutoSave mode
  • Save & Restore Setup
Back to top of page
Description
  • The Open Platform AcquiREC provides at low cost per channel, high technology 16 bit digitizers for high speed, high accuracy recording up to 40MS/s.
    AcquiREC offers a versatile front end with differential inputs, large number of vertical ranges and extend triggering.

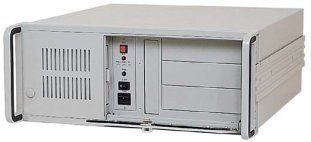

    AcquiREC data recorder includes a data acquisition sub-system with up to 8 modules Master/Slave of 4 channels each, up to 512Mbytes of embedded SDRAM (maximum of 128Mbytes per channel) and a high performance rack mount computer.

    AcquiREC multi-channels recorder is controlled by the easy to use AcquiFlex software offering all features necessary for a fast hands on, efficient data recording, analysis and saving.
Back to top of page
Ordering Information
  • 10MS/s version

    AcquiREC-4-10 , 4 channels Recorder, 10MS/s, 512 Mbytes
    AcquiREC-8-10 , 8 channels Recorder, 10MS/s, 512 Mbytes
    AcquiREC-16-10 , 16 channels Recorder, 10MS/s, 512 Mbytes
    AcquiREC-32-10 , 32 channels Recorder, 10MS/s, 512 Mbytes

  • 20MS/s version

    AcquiREC-4-20 , 4 channels Recorder, 20MS/s, 512 Mbytes
    AcquiREC-8-20 , 8 channels Recorder, 20MS/s, 512 Mbytes
    AcquiREC-16-20 , 16 channels Recorder, 20MS/s, 512 Mbytes
    AcquiREC-32-20 , 32 channels Recorder, 20MS/s, 512 Mbytes

  • 40MS/s version

    AcquiREC-4-40 , 4 channels Recorder, 40MS/s, 512 Mbytes
    AcquiREC-8-40 , 8 channels Recorder, 40MS/s, 512 Mbytes
    AcquiREC-16-40 , 16 channels Recorder, 40MS/s, 512 Mbytes
    AcquiREC-32-40 , 32 channels Recorder, 40MS/s, 512 Mbytes

  • Standard Accessories

    User's manual
    Euro or US Power cord
    Traceable Certificate of Calibration
  • Optional Accessories

    17" LCD Flat Display
